Upgrade 10gR2 RAC to 11gR1 RAC on Oracle Enterprise Linux 5

This Tutorial shows the step by step of upgrading 3-Node 10gR2 RAC database on ASM to 11gR1 RAC. The below upgrade path allows upgrading 10gR2 CRS to 11gR1 CRS with no downtime using rolling upgrade. The rolling upgrade of ASM is possible starting from Release 11gR1 (11.1.0.6) and is not backward compatible. That means we cannot use Rolling upgrade method for upgrading 10gR2 ASM to 11gR1 ASM.


Existing 10gR2 RAC setup (Before Upgrade)
Target 11gR1 RAC Setup (After Upgrade)
Clusterware
Oracle 10g R2 Clusterware 10.2.0.3
Oracle 11gR1 Clusterware 11.1.0.6
ASM Binaries
10g R2 RAC 10.2.0.3
11gR1 RAC 11.1.0.6
Cluster Name
Lab
Lab
Cluster Nodes
node1, node2, node3
node1, node2, node3
Clusterware Home
/u01/app/oracle/crs (CRS_HOME)
/u01/app/oracle/crs (CRS_HOME)
Clusterware Owner
oracle:(oinstall, dba)
oracle:(oinstall, dba)
VIPs
node1-vip, node2-vip, node3-vip
node1-vip, node2-vip, node3-vip
SCAN
N/A
N/A
SCAN_LISTENER Host/port
N/A
N/A
OCR and Voting Disks Storage Type
Raw Devices
Raw Devices
OCR Disks
/dev/raw/raw1, /dev/raw/raw2
/dev/raw/raw1, /dev/raw/raw2
Voting Disks
/dev/raw/raw3, /dev/raw/raw4, /dev/raw/raw5
/dev/raw/raw3, /dev/raw/raw4, /dev/raw/raw5
ASM_HOME
/u01/app/oracle/asm
/u01/app/oracle/asm11gr1
ASM_HOME Owner
oracle:(oinstall, dba)
oracle:(oinstall, dba)
ASMLib user:group
oracle:oinstall
oracle:oinstall

DB Binaries
Oracle 10gR2 RAC (10.2.0.3)
Oracle 11gR1 RAC (11.1.0.6)
DB_HOME
/u01/app/oracle/db
/u01/app/oracle/db11gr1
DB_HOME Owner
oracle:(oinstall, dba)
oracle:(oinstall, dba)
DB LISTENER
LAB_LISTENER
LAB_LISTENER
DB Listener Host/port
node1-vip, node2-vip, node3-vip (port 1530)
node1-vip, node2-vip, node3-vip (port 1530)
DB Storage Type, File Management
ASM with OMFs
ASM with OMFs
ASM diskgroups for DB and FRA
DATA, FRA
DATA, FRA
OS Platform
Oracle Enterprise Linux 5.5 (32 bit)
Oracle Enterprise Linux 5.5 (32 bit)
HERE’s the Existing 10gR2 RAC Setup in Detail



The Upgrade Process is composed of below   Stages:
·  Pre-Upgrade Tasks
·  Upgrade 10gR2 (10.2.0.1) Clusterware to 11gR1 (11.1.0.6) ÃŸ Rolling Upgrade No Downtime.
·  Upgrade 10gR2 ASM_HOME (10.2.0.1) to 11gR1 RAC (11.1.0.6) ÃŸ ASM and Database Downtime required.
·  Upgrade 10gR2 Database to 11gR1 RAC (11.1.0.6) ÃŸ Database Downtime required.

Pre-Upgrade tasks:

Install/Upgrade RPMs required for 11gR1 RAC and 11gR2 RAC Installation
Set 11gR1 specific Kernel Parameters
Update the TIMEZONE file version
Backing up ORACLE_HOMEs/database


Minimum Required RPMs for 11gR1 RAC on OEL 5.5 (All the 3 RAC Nodes):

binutils-2.17.50.0.6-2.el5
compat-libstdc++-33-3.2.3-61
elfutils-libelf-0.125
elfutils-libelf-devel-0.125
glibc-2.5-12
glibc-common-2.5-12
glibc-devel-2.5-12
glibc-headers-2.3.4-2
gcc-4.1.1-52
gcc-c++-4.1.1-52
libaio-0.3.106
libaio-devel-0.3.106
libgcc-4.1.1-52
libstdc++-4.1.1
libstdc++-devel-4.1.1-52.e15
make-3.81-1.1
sysstat-7.0.0
unixODBC-2.2.11
unixODBC-devel-2.2.11

Below command verifies whether the specified rpms are installed or not. Any missing rpms can be installed from the OEL Media Pack

rpm -q binutils compat-libstdc++-33 elfutils-libelf elfutils-libelf-devel \
              gcc gcc-c++ glibc glibc-common glibc-devel glibc-headers libaio libaio-devel \
              libgcc libstdc++ libstdc++-devel make sysstat unixODBC unixODBC-devel

NOTE: The cvuqdisk rpm in 11gR1 has the same version as one available in 10gR2 (cvuqdisk-1.0.1-1), so I did not have to replace the 10gR2 cvuqdisk by 11gR1 one.

Kernel Parameter Requirements (All the 3 RAC Nodes):

/etc/sysctl.conf:

# Kernel sysctl configuration file for Oracle Enterprise Linux
#
# For binary values, 0 is disabled, 1 is enabled.  See sysctl(8) and
# sysctl.conf(5) for more details.

# Controls IP packet forwarding
net.ipv4.ip_forward = 0

# Controls source route verification
net.ipv4.conf.default.rp_filter = 1

# Do not accept source routing
net.ipv4.conf.default.accept_source_route = 0

# Controls the System Request debugging functionality of the kernel
kernel.sysrq = 1

# Controls whether core dumps will append the PID to the core filename
# Useful for debugging multi-threaded applications
kernel.core_uses_pid = 1

# Controls the use of TCP syncookies
net.ipv4.tcp_syncookies = 1

# Controls the maximum size of a message, in bytes
kernel.msgmnb = 65536

# Controls the default maxmimum size of a mesage queue
kernel.msgmax = 8192

# Controls the maximum shared segment size, in bytes
kernel.shmmax = 4294967295

# Controls the maximum number of shared memory segments, in pages
kernel.shmall = 1073741824
# For 11g, recommended value for file-max is 6815744
fs.file-max = 6815744
# For 10g, uncomment 'fs.file-max 327679', comment other entries for this parameter and re-run sysctl -p
# fs.file-max:327679
kernel.msgmni = 2878
kernel.sem = 250 32000 100 142
kernel.shmmni = 4096
net.core.rmem_default = 262144
# For 11g, recommended value for net.core.rmem_max is 4194304
net.core.rmem_max = 4194304
# For 10g, uncomment 'net.core.rmem_max 2097152', comment other entries for this parameter and re-run sysctl -p
# net.core.rmem_max=2097152
net.core.wmem_default = 262144
# For 11g, recommended value for wmem_max is 1048576
net.core.wmem_max = 1048576
# For 10g, uncomment 'net.core.wmem_max 262144', comment other entries for this parameter and re-run sysctl -p
# net.core.wmem_max:262144
fs.aio-max-nr = 3145728
# For 11g, recommended value for ip_local_port_range is 9000 65500
net.ipv4.ip_local_port_range = 9000 65500
# For 10g, uncomment 'net.ipv4.ip_local_port_range 1024 65000', comment other entries for this parameter and re-run sysctl -p
# net.ipv4.ip_local_port_range:1024 65000
# Added min_free_kbytes 50MB to avoid OOM killer on EL4/EL5
vm.min_free_kbytes = 51200



The below database patches were applied in order to update the timezone file version to 4 if it is less than 4. DBUA may fail with the “ORA-01722: invalid number” error during the upgrade process.

Verify the current version of the timezone file in the 10gR2 database.

select * from v$timezone_file;

Patches to update the timezone file to version 4:

5746875
5632264


Steps I followed to take the Backup of ORACLE_HOMEs before the upgrade: (This can be applied to 11gR1 and 10g databases)

On node1:

mkdir backup
cd backup

dd if=/dev/dev/raw1  of=ocr_disk_10gr2.bkp
dd if=/dev/dev/raw3  of=voting_disk_10gr2.bkp

tar cvf node1_crs_10gr2.tar /u01/app/oracle/crs/*
tar cvf node1_asm_10gr2.tar /u01/app/oracle/asm/*
tar cvf node1_db_10gr2.tar /u01/app/oracle/db/*
tar cvf node1_etc_oracle /etc/oracle/*

cp /etc/inittab etc_inittab

mkdir etc_init_d
cd etc_init_d
cp /etc/init.d/init* .

On node2:

mkdir backup
cd backup

tar cvf node2_crs_10gr2.tar /u01/app/oracle/crs/*
tar cvf node2_asm_10gr2.tar /u01/app/oracle/asm/*
tar cvf node2_db_10gr2.tar /u01/app/oracle/db/*
tar cvf node2_etc_oracle /etc/oracle/*

cp /etc/inittab etc_inittab

mkdir etc_init_d
cd etc_init_d
cp /etc/init.d/init* .

On node3:

mkdir backup
cd backup

tar cvf node3_crs_10gr2.tar /u01/app/oracle/crs/*
tar cvf node3_asm_10gr2.tar /u01/app/oracle/asm/*
tar cvf node3_db_10gr2.tar /u01/app/oracle/db/*
tar cvf node3_etc_oracle /etc/oracle/*

cp /etc/inittab etc_inittab

mkdir etc_init_d
cd etc_init_d
cp /etc/init.d/init* .




RMAN full backup was taken.
Step By Step: Upgrade Clusterware, ASM and Database from 10.2.0.3 to 11.1.0.6.


On Node1:

·         Stop the labdb1 instance, asm instance, nodeapps.
·         Relocate any db or cluster service resources to the other nodes.
·         Stop and disable the CRS on this node
·         Reboot the node to clean up any oracle/CRS related processes on this node.
·         Enable the CRS after the node comes back up.
·         Run the preupdate.sh script from 11gR1 clusterware Media to unlock the CRS_HOME (so that oracle user can modify some of the root owned files).

·         Start the runInstaller from the 11gR1 Clusterware software directory.

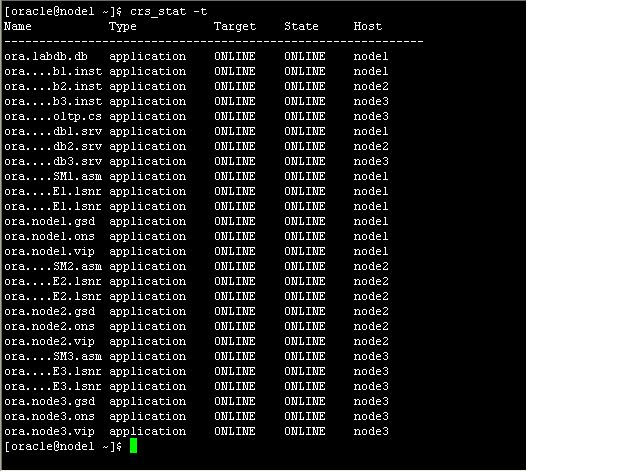

[oracle@node1 ~]$ crs_ctl -t
srvctl stop instance -d labdb –i labdb1
srvctl stop asm –n node1
srvctl stop nodeapps –n node1
crs_relocate ora.labdb.db
crs_relocate ora.labdb.oltp.cs
crsctl stop crs
crsctl disable crs
reboot

crsctl enable crs  ß once the node comes back up after the reboot.
Crsctl check crs  ß CRS stack will not be up as CRS was disabled before the reboot.
/home/oracle/11gR1/clusterware/upgrade/preupdate.sh –crshome /u01/app/oracle/crs –crsuser oracle -noshutdown

./runInstaller –ignoreSysPrereqs
/u01/app/oracle/crs/install/rootupgrade  ß run this script at the end as root

Verify the CRS

crsctl check crs (on all the RAC nodes) ß it should be up on all the nodes
crsctl query crs activeversion node1  ß The active version should be 10.2.0.3
crsctl query crs activeversion node2
crsctl query crs activeversion node3
crsctl query crs softwareversion node1  ß The Software Version should show 11.1.0.6
crsctl query crs softwareversion node2
crsctl query crs softwareversion node3
[oracle@node1 ~]$ ssh node1 /u01/app/oracle/crs/bin/crsctl check crs
[oracle@node1 ~]$ ssh node2 /u01/app/oracle/crs/bin/crsctl check crs
[oracle@node1 ~]$ ssh node3 /u01/app/oracle/crs/bin/crsctl check crs
[oracle@node1 ~]$ crsctl query crs activeversion node1
[oracle@node1 ~]$ crsctl query crs activeversion node2
[oracle@node1 ~]$ crsctl query crs activeversion node3
[oracle@node1 ~]$ crsctl query crs softwareversion node3
[oracle@node1 ~]$ crsctl query crs softwareversion node2
[oracle@node1 ~]$ crsctl query crs softwareversion node1


On Node2:

·         Stop the database instance labdb2, asm instance, nodeapps.
·         Relocate any db or cluster service resources to the other nodes.
·         Stop and disable the CRS on this node
·         Reboot the node to clean up any oracle related processes on this node.
·         Enable the crs after the node comes back up.
·         Run the preupdate.sh script from 11gR1 clusterware Media to unlock the CRS_HOME (so that oracle user can modify some of the root owned files).
·         Start the runInstaller from the 11gR1 Clusterware software directory.

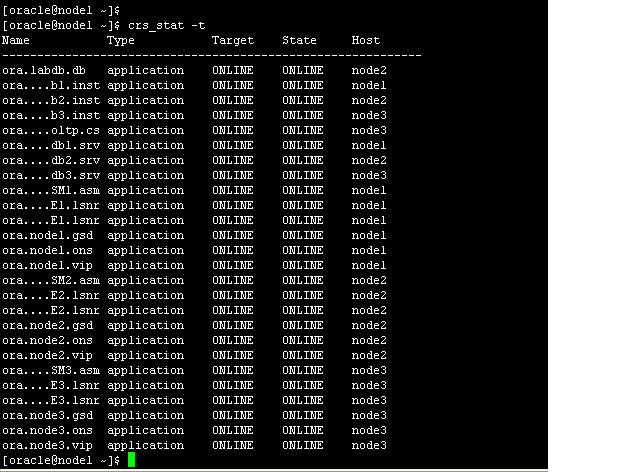

[oracle@node1 ~]$ crs_ctl -t
srvctl stop instance -d labdb –i labdb2
srvctl stop asm –n node2
srvctl stop nodeapps –n node2
crs_relocate ora.labdb.db
crsctl stop crs
crsctl disable crs
reboot

crsctl enable crs
crsctl check crs
/home/oracle/11gR1/clusterware/upgrade/preupdate.sh –crshome /u01/app/oracle/crs –crsuser oracle -noshutdown

./runInstaller –ignoreSysPrereqs
/u01/app/oracle/crs/install/rootupgrade

Verify the CRS

crsctl check crs (on all the RAC nodes)
crsctl query crs activeversion node1  ß The active version should be 10.2.0.3
crsctl query crs activeversion node2  ß The active version should be 10.2.0.3
crsctl query crs activeversion node3
crsctl query crs softwareversion node1  ß The Software Version should show 11.1.0.6
crsctl query crs softwareversion node2  ß The Software Version should show 11.1.0.6
crsctl query crs softwareversion node3
[oracle@node1 ~]$ ssh node1 /u01/app/oracle/crs/bin/crsctl check crs
[oracle@node1 ~]$ ssh node2 /u01/app/oracle/crs/bin/crsctl check crs
[oracle@node1 ~]$ ssh node3 /u01/app/oracle/crs/bin/crsctl check crs
[oracle@node1 ~]$ crsctl query crs activeversion node1
[oracle@node1 ~]$ crsctl query crs activeversion node2
[oracle@node1 ~]$ crsctl query crs activeversion node3
[oracle@node1 ~]$ crsctl query crs softwareversion node3
[oracle@node1 ~]$ crsctl query crs softwareversion node2
[oracle@node1 ~]$ crsctl query crs softwareversion node1
[oracle@node1 ~]$ /u01/app/oracle/db/bin/srvctl status database -d labdb
On Node3:

·         Stop the database instance labdb3, asm instance, nodeapps.
·         Relocate any db or cluster service resources to the other nodes.
·         Stop and disable the CRS on this node
·         Reboot the node to clean up any oracle related processes on this node.
·         Enable the crs after the node comes back up.
·         Run the preupdate.sh script from 11gR1 clusterware Media to unlock the CRS_HOME (so that oracle user can modify some of the root owned files).
·         Start the runInstaller from the 11gR1 Clusterware software directory.

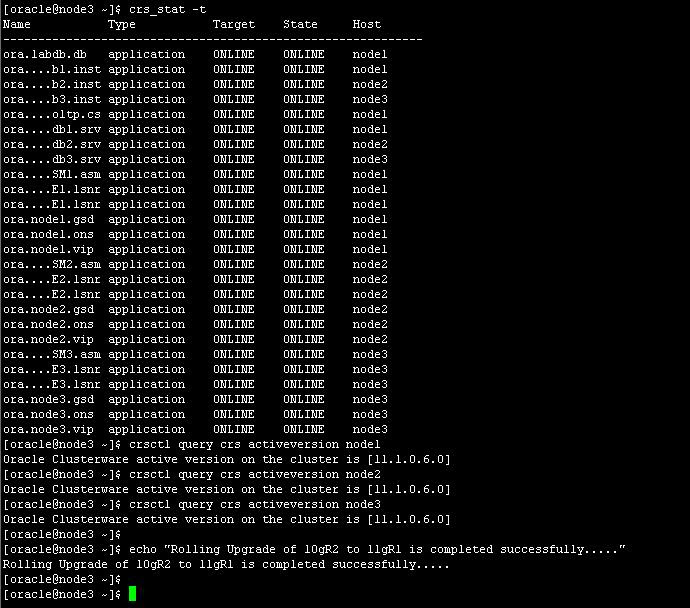

[oracle@node1 ~]$ crs_ctl -t


srvctl stop instance -d labdb –i labdb3
srvctl stop asm –n node3
srvctl stop nodeapps –n node3
crs_relocate ora.labdb.oltp.cs
crsctl stop crs
crsctl disable crs
reboot

crsctl enable crs
crsctl check crs
/home/oracle/11gR1/clusterware/upgrade/preupdate.sh –crshome /u01/app/oracle/crs –crsuser oracle -noshutdown

./runInstaller –ignoreSysPrereqs
/u01/app/oracle/crs/install/rootupgrade

Verify the CRS

crsctl check crs (on all the RAC nodes)
crsctl query crs activeversion node1
crsctl query crs activeversion node2
crsctl query crs activeversion node3
crsctl query crs softwareversion node1
crsctl query crs softwareversion node2
crsctl query crs softwareversion node3

The active Version and Software version should show 11.1.0.6 at this stage.
[oracle@node3 ~]$ crs_ctl -t





·         Start the runInstaller from the 11gR1 database software Install Media and select the “Install Software Only” Configuration Option on the OUI screen.


./runInstaller –ignoreSysPrereqs  ÃŸ From the 11gR1 Software for Database

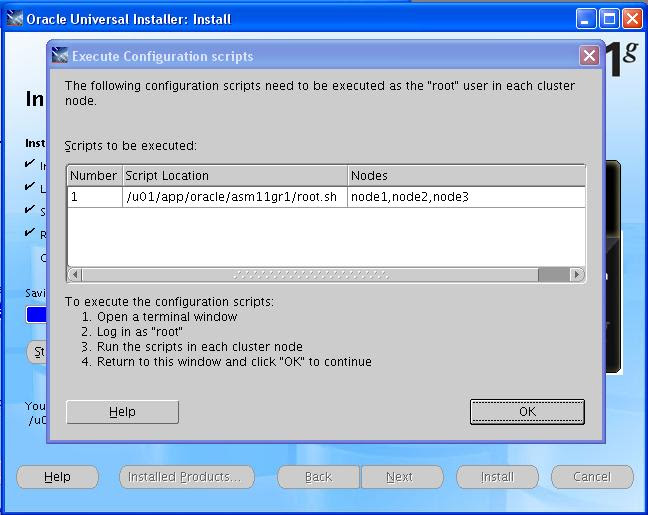

Run the root.sh on all the RAC nodes to finish the Installation.

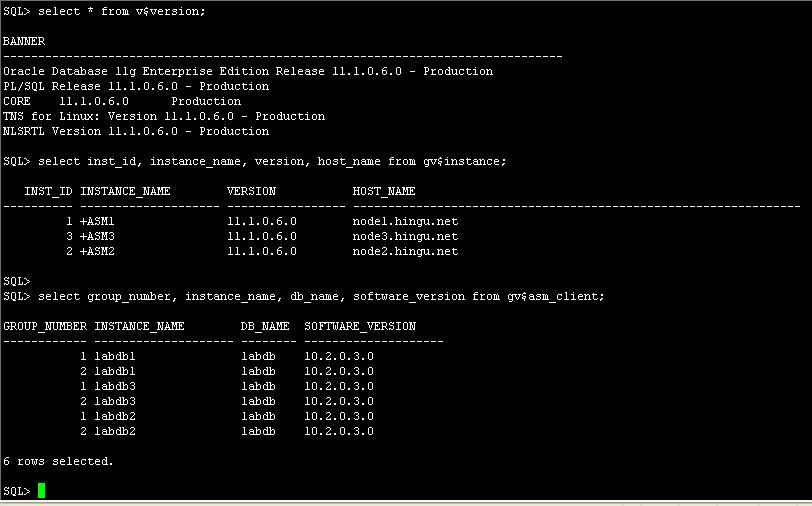

Invoke the dbua from the new 11gR1 ASM_HOME to upgrade the 10gR2 ASM to 11gR1 ASM. Upgrading ASM instance is pretty much like Starting the ASM Instances and ASM Listeners using the newly Installed 11gR1 ASM_HOME.  DBUA simply copies the asm pfile and password files from 10gR2 dbs folder to 11gR1 dbs folder. It also copies the tnsnames.ora and listener.ora files as well. At the end, it modifies the ASM related CRS resources (asm and all the listeners belonging to 10gR2 ASM_HOME) to start from new 11gR1 ASM_HOME by modifying the ACTION_SCRIPT parameter to point it to the 11gR1 racgwrap.

export ORACLE_HOME=/u01/app/oracle/asm11gr1
export ORACLE_SID=+ASM1
/u01/app/oracle/asm11gr1/bin/dbua



Issues Encountered and Troubleshooting:

Issue #1:

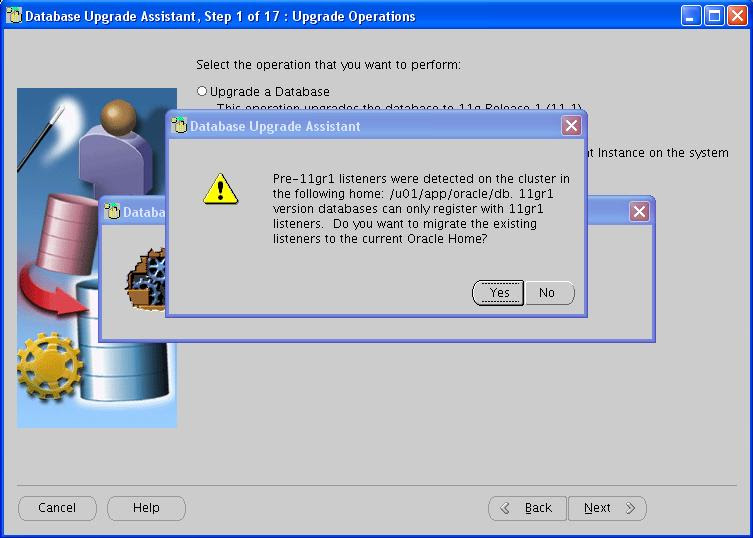

During the ASM Upgrade by DBUA, I was prompted for migrating DB listeners running from 10gR2 existing Database HOME to 11gR1 ASM HOME. I did not want the DB Listener to migrate to ASM HOME but the Installer was not moving ahead if pressed “No”. So, I decided to move forward with the DB listener migration. I had to manually migrate this DB listener back to 10gR2 DB home at the end of the upgrade of ASM process.


Here’s how the DB listener LAB_LISTENER was moved back to 10gR2 DB HOME from 11gR1 ASM_HOME.

I made sure that the 10gR2 TNS_ADMIN still have the listener.ora and tnsnames.ora files with information about LAB_LISTENER.
Updated the CRS resources related to LAB_LISTENER as shown below to point the ACTION_SCRIPT to /u01/app/oracle/asm/bin/racgwrap


Generate the CAP files:

cd /u01/app/oracle/crs/crs/public
/u01/app/oracle/crs/bin/crs_stat –p ora.node1.LAB_LISTENER_NODE1.lsnr > ora.node1.LAB_LISTENER_NODE1.lsnr.cap
/u01/app/oracle/crs/bin/crs_stat –p ora.node2.LAB_LISTENER_NODE2.lsnr > ora.node2.LAB_LISTENER_NODE2.lsnr.cap
/u01/app/oracle/crs/bin/crs_stat –p ora.node3.LAB_LISTENER_NODE3.lsnr > ora.node3.LAB_LISTENER_NODE3.lsnr.cap

The ACTION_SCRIPT parameter was modified in these cap files.

Replaced the line…

ACTION_SCRIPT=/u01/app/oracle/asm11gr1/bin/racgwrap

WITH…

ACTION_SCRIPT=/u01/app/oracle/asm/bin/racgwrap

Ran the below commands to update the OCR with these changes.

/u01/app/oracle/crs/bin/crs_register –u ora.node1.LAB_LISTENER_NODE1.lsnr
/u01/app/oracle/crs/bin/crs_register –u ora.node2.LAB_LISTENER_NODE2.lsnr
/u01/app/oracle/crs/bin/crs_register –u ora.node3.LAB_LISTENER_NODE3.lsnr
Issue #2:

The DBUA could not start the ASM on node 2 during post upgrade steps at the end of the upgrade process and so it terminated with the below error in trace.log file.


I tried to manually start the ASM instance and it worked just fine but the OCR was still showing the “UNKNOWN” status for this resource. Even using crs_start/crs_stop to start or stop the ASM on node2 could not change the status from UNKNOWN. This means that the ASM resource entry for node2 in OCR was somehow logically corrupted by DBUA. I had to unregister this entry and register back with the same parameter to fix the issue. After doing that, the ASM was successfully started and stopped by srvctl command.


Generate the CAP file for ASM resource on node2.

ora.node2.ASM2.asm.cap:

NAME=ora.node2.ASM2.asm
TYPE=application
ACTION_SCRIPT=/u01/app/oracle/asm11gr1/bin/racgwrap
ACTIVE_PLACEMENT=0
AUTO_START=1
CHECK_INTERVAL=300
DESCRIPTION=CRS application for ASM instance
FAILOVER_DELAY=0
FAILURE_INTERVAL=0
FAILURE_THRESHOLD=0
HOSTING_MEMBERS=node2
OPTIONAL_RESOURCES=
PLACEMENT=restricted
REQUIRED_RESOURCES=
RESTART_ATTEMPTS=5
SCRIPT_TIMEOUT=600
START_TIMEOUT=900
STOP_TIMEOUT=180
UPTIME_THRESHOLD=7d
USR_ORA_ALERT_NAME=
USR_ORA_CHECK_TIMEOUT=0
USR_ORA_CONNECT_STR=/ as sysasm
USR_ORA_DEBUG=0
USR_ORA_DISCONNECT=false
USR_ORA_FLAGS=
USR_ORA_IF=
USR_ORA_INST_NOT_SHUTDOWN=
USR_ORA_LANG=
USR_ORA_NETMASK=
USR_ORA_OPEN_MODE=mount
USR_ORA_OPI=false
USR_ORA_PFILE=
USR_ORA_PRECONNECT=none
USR_ORA_SRV=
USR_ORA_START_TIMEOUT=0
USR_ORA_STOP_MODE=immediate
USR_ORA_STOP_TIMEOUT=0
USR_ORA_VIP=

Unregister the ASM instance resource from OCR for node2

srvctl remove instance –d labdb –i labdb2
crs_unregister ora.node2.ASM2.asm

Registered the same ASM resource back to OCR

crs_register ora.node2.ASM2.asm
srvctl add instance –d labdb –i labdb2 –n node2
srvctl modify instance –d labdb –I labdb2 –t +ASM2
srvctl modify service -d labdb -s oltp -n -i "labdb1,labdb2,labdb3"



·         Start the runInstaller from the 11gR1 database software Install Media and select the “Install Software Only” Configuration Option on the OUI screen.
·         Invoke the dbua to upgrade the database.
·         There may be warnings about INVALID objects and Stale Statistics which can safely be ignored.

./runInstaller –ignoreSysPrereqs  ÃŸ From the 11gR1 Software for Database

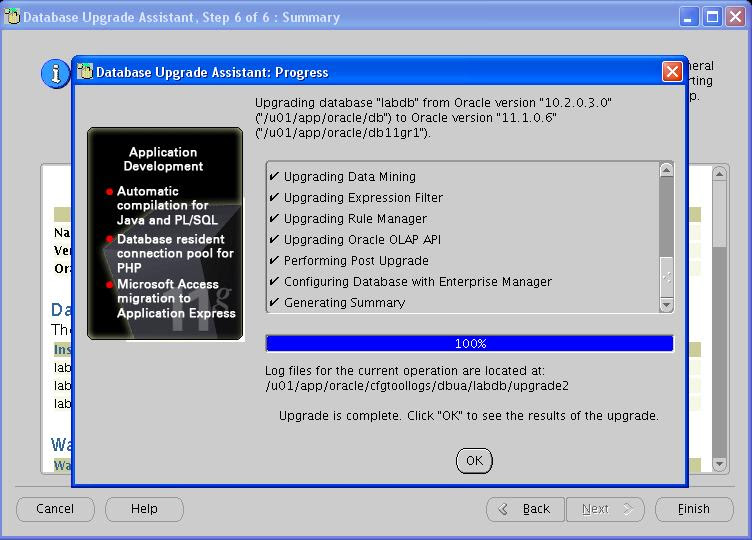

Invoke the DBUA from the newly installed 11gR1 HOME for the database using X terminal

/u01/app/oracle/db11gr1/bin/dbua

DBUA invalidates some of the objects in the database during the upgrade of database and so DBUA runs the utlrcmp.sql script at the end as part of post upgrade steps to make them valid. I would start running this script when the DBUA progress is around 75% so that when the DBUA runs this script to recompile the INVALID objects, it has to recompile fewer objects and helps reduce the overall timing of upgrade process as a whole.




Move the listener LAB_LISTENER from 10gR2 DB home to 11gR1 HOME.


The DBUA did not move the DB listener LAB_LISTENER from 10gR2 HOME to the 11gR1 Home and I had to manually moved it as below:
Copy the 10gR2 listener.ora and tnsnames.ora files to the 11gR2 TNS_ADMIN

ssh node1 cp /u01/app/oracle/db/network/admin/listener.ora /u01/app/oracle/db11gr1/network/admin
ssh node1 cp /u01/app/oracle/db/network/admin/tnsnames.ora /u01/app/oracle/db11gr1/network/admin
ssh node2 cp /u01/app/oracle/db/network/admin/listener.ora /u01/app/oracle/db11gr1/network/admin
ssh node2 cp /u01/app/oracle/db/network/admin/tnsnames.ora /u01/app/oracle/db11gr1/network/admin
ssh node3 cp /u01/app/oracle/db/network/admin/listener.ora /u01/app/oracle/db11gr1/network/admin
ssh node3 cp /u01/app/oracle/db/network/admin/tnsnames.ora /u01/app/oracle/db11gr1/network/admin

Generate the CAP files

cd /u01/app/oracle/crs/crs/public

crs_stat -p ora.node1.LAB_LISTENER_NODE1.lsnr > ora.node1.LAB_LISTENER_NODE1.lsnr.cap
crs_stat -p ora.node2.LAB_LISTENER_NODE2.lsnr > ora.node2.LAB_LISTENER_NODE2.lsnr.cap
crs_stat -p ora.node3.LAB_LISTENER_NODE3.lsnr > ora.node3.LAB_LISTENER_NODE3.lsnr.cap

Modify the ACTION_SCRIPT parameter in these CAP files to point to the new 11gR1 home.

Update the OCR with these changes

crs_register -u ora.node1.LAB_LISTENER_NODE1.lsnr
crs_register -u ora.node2.LAB_LISTENER_NODE2.lsnr
crs_register -u ora.node3.LAB_LISTENER_NODE3.lsnr

Start the listener using srvctl

srvctl stop lsnr -l LAB_LISTENER_NODE1 -n node1
srvctl stop lsnr -l LAB_LISTENER_NODE2 -n node2
srvctl stop lsnr -l LAB_LISTENER_NODE3 -n node3

srvctl start lsnr -l LAB_LISTENER_NODE1 -n node1
srvctl start lsnr -l LAB_LISTENER_NODE2 -n node2
srvctl start lsnr -l LAB_LISTENER_NODE3 -n node3










Comments

Popular posts from this blog

How to find the server is whether standby (slave) or primary(master) in Postgresql replication ?

7 Steps to configure BDR replication in postgresql

How to Get Table Size, Database Size, Indexes Size, schema Size, Tablespace Size, column Size in PostgreSQL Database

Ora2PG - Oracle/MySQL to Postgres DB migration Version 20.0

PostgreSQL Introduction
